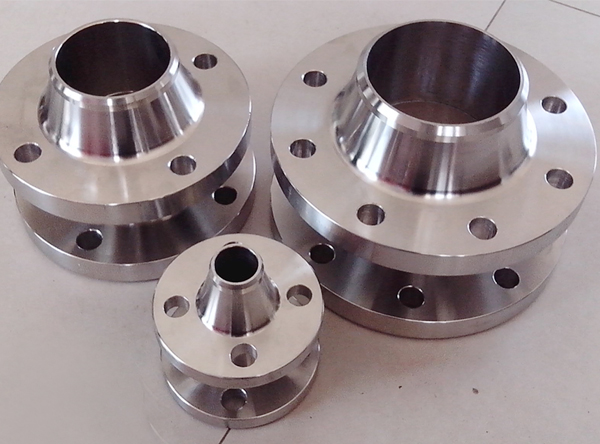

Nascent Pipe & Tubes is associated with offering an extraordinary bundle of Tempered Steel 316/316L/316Ti Flanges as a Manufacturer, exporter, stockiest and supplier to our nuclear family and in general clients. Alloy 316/316L (UNS S31600/S31603) is a chromium-nickel molybdenum austenitic solidified steel made to give overhauled utilization imperviousness to Alloy 304/304L in reasonably harming conditions. Alloy 316H (UNS S31609) is a high carbon change of Alloy 316 conveyed for use in raised temperature association.
As to appraisals, we moreover offer these Flanges in various sorts, for example, SS Slip On Flanges, SS Blind Flanges, SS Weld Neck Flanges, SS Attachment Weld Flanges, SS Display Blind Flanges, SS Screwed/Strung Flanges, SS Decreasing Flanges, and SS Ring Type Joint Flanges (RTJ). Then, at that point, our costs of such Flanges are set recalling clients fundamental.
Stainless Steel 316/316L/316Ti Flanges Manufacturers, Stainless Steel 316/316L/316Ti Flanges Suppliers, Stainless Steel 316/316L/316Ti Flanges Stockists, Stainless Steel 316/316L/316Ti Flanges Exporters
Stainless Steel 316/316L/316Ti Flanges Manufacturers in India, Stainless Steel 316/316L/316Ti Flanges Suppliers in India, Stainless Steel 316/316L/316Ti Flanges Stockists in India, Stainless Steel 316/316L/316Ti Flanges Exporters in India
As for public and overall nature of crude materials, we comparably offer these SS 316/316L/316Ti Flanges in changed sizes and thicknesses as Stainless Steel 316/316L/316Ti Flangesnstrated by unambiguous requests by our regarded clients at business region driving costs.
Stainless Steel 316/316L/316Ti Flanges Manufacturers In Mumbai, Stainless Steel 316/316L/316Ti Flanges Suppliers In Mumbai, Stainless Steel 316/316L/316Ti Flanges Stockists In Mumbai, Stainless Steel 316/316L/316Ti Flanges Exporters In Mumbai
SS 316/316L/316Ti Flanges Specifications:
| Grade | SS 316(UNS S31600) SS 316L(UNS S31603) SS 316Ti(UNS S31635) |
|---|---|
| Werkstoff Nr | 316 / 1.4401 316L / 1.4404 316TI/1.4571 |
| Dimension Std. | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges etc. |
| Specification | ASTM A182 / A240 & ASME SA182 / SA240 |
| Size | ½” NB – 48” NB |
| Class | 150#, 300#, 600#, 900#, 1500#, 2500#, etc |
| Pressure | DIN PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160, etc |
Chemical Compositions of SS 316/316L/316Ti Flanges
| C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|
| 316 (S31600) |
0.08 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
| 316L (S31603) |
0.03 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
| 316TI(S31635) | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
| 0.08 | 2 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.1 |
Mechanical Properties of SS 316/316L/316Ti Flanges
| Grade | Tensile Strength ksi (min) |
Yield Strength 0.2% ksi (min) |
Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 316 (S31600) |
75 | 30 | 40 | 217 | 95 |
| 316L (S31603) |
70 | 25 | 40 | 217 | 95 |
| 316TI(S31635) | 515(Mpa) | 205(Mpa) | 35 | 205 | 75 |
Physical Properties of SS 316/316L/316Ti Flanges
| Density lbm/in3 |
Thermal Conductivity (BTU/h ft. °F) |
Electrical Resistivity (in x 10-6) |
Modulus of Elasticity (psi x 106 |
Coefficient of Thermal Expansion (in/in)/°F x 10-6 |
Specific Heat (BTU/lb/°F) |
Melting Range (°F) |
|---|---|---|---|---|---|---|
| 0.29 at 68°F | 100.8 at 68 212°F | 29.1 at 68°F | 29 | 8.9 at 32 – 212°F | 0.108 at 68°F | 2500 to 2550 |
| 9.7 at 32 – 1000°F | 0.116 at 200°F | |||||
| 11.1 at 32 – 1500°F |
